Technical Specifications
Security Rating |
Engineered for IWA 14: 7200kg @ 80kph |
---|---|
Minimum Array |
3 |
Foundation Depth |
170mm Plate 259mm Socket |
Height Above Ground |
1100mm |
Diameter |
150mm (front face) x 300mm (profile) |
Finishes |
Component parts supplied galvanised as standard. The core is sleeved as standard with a stainless steel, rectangular sleeve (324x176mm). Bespoke sleeves can be designed and supplied after consultation with our technical team. |
Information

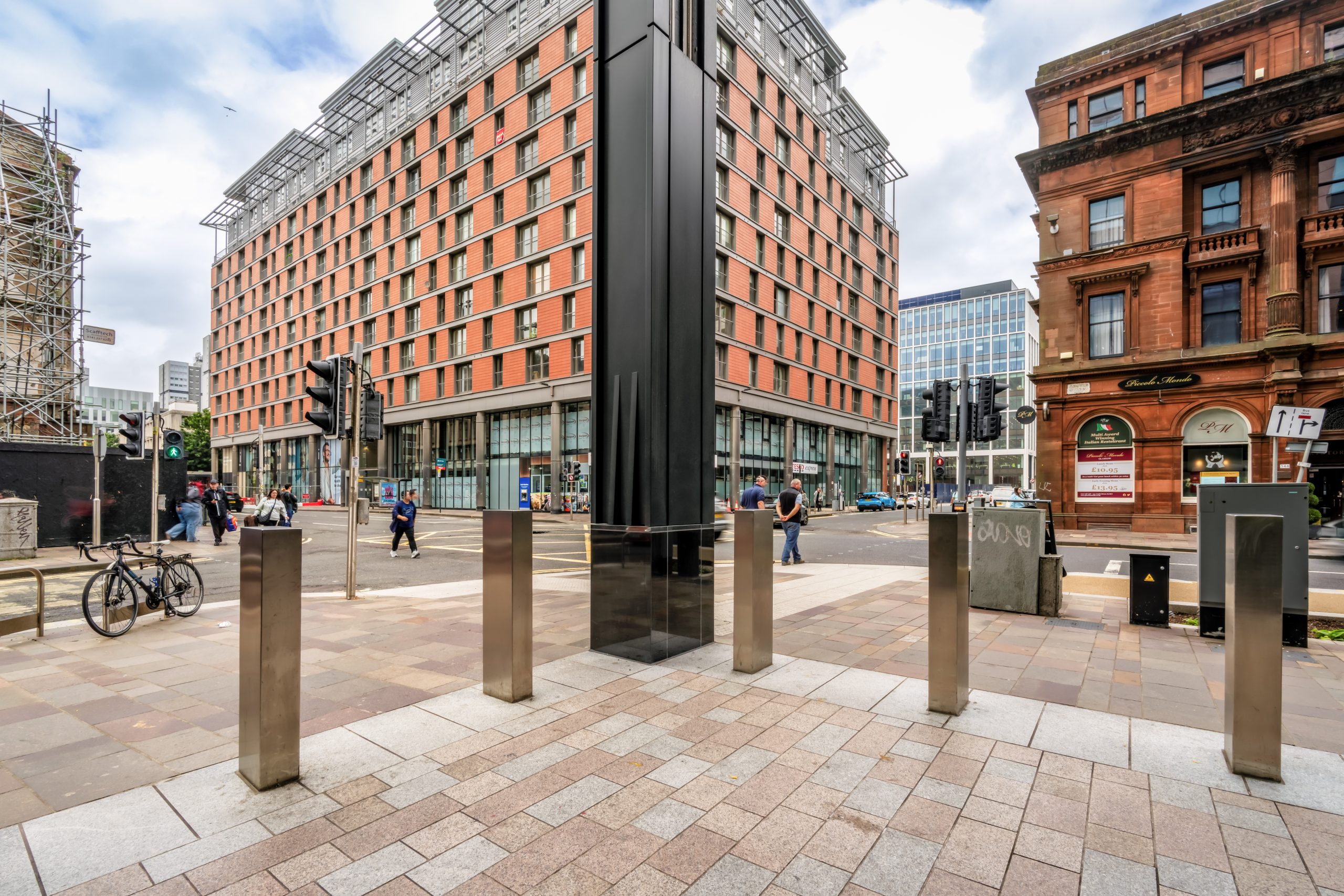

The removable version of our Centurion Bollard is based on our static, shallow mount model which withstood impact from a 7,200 kg vehicle travelling at 50 mph (80kph) achieving less than 2 meters of penetration. The removable variant has been engineered to withstand the same impact.
- Designed to be installed within a foundation depth of just 170 mm and with a socket depth of just 259 mm.
- Enables effective perimeter protection to be installed within urban environments which typically have a dense network of underground services.
- Compliments the shallow foundation Centurion, fitting easily into the same perimeter line, providing very occasional access to an area if required.
- Minimal time and disruption to deploy shallow foundation products as the base plates are laser cut with directional arrows and part numbers which can be cross-referenced to site layout drawings, ensuring the installation of the product is straight forward, causing minimal disruption to site and street scenes.
- An incredibly strong product which is supplied with all component parts galvanised as standard. The core is sleeved as standard with stainless steel, rectangular sleeve (324x176mm).
- Bespoke sleeves can be designed and supplied after consultation with our technical team.
